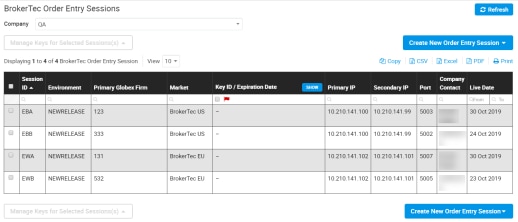

BrokerTec Order Entry Sessions

Using the BrokerTec Requests - Order Entry Sessions page, authorized users can create and manage order entry sessions which are used to:

Note: The iLink IP and port information will be made available in the Request Center NR/CERT once the session(s) creation has been completed.

Within a single Company (Primary Globex firm), multiple order entry sessions can be created. Users can also generate and manage the secure key pairs that must be used for authentication during the secure logon process for order entry sessions.

A valid order entry session consists of:

  • SenderCompID - required before running AutoCert+ certification tests.
  • Session ID (first 3 characters)
  • Globex Firm ID (next 3 to 5 characters)
  • Fault Tolerance Indicator (last character)
  • Password
  • Access Key ID
  • IP address
  • Port
  • Market Segment ID (MSGW session)

The following functions are available on the Order Entry Sessions page:

Creating a BrokerTec Order Entry Session

On the BrokerTec Requests - Order Entry Sessions page, users can create new BrokerTec order entry sessions.

Note: Globex Firm IDs and Globex User Signatures must be created before requesting sessions.

  1. To create a new BrokerTec order entry session:
  1. Make a selection in the Company drop-down menu, if necessary.

The BrokerTec order entry sessions for the company display.

  1. Select Create New Order Entry Session().
  1. Enter the session details.

  • Environment - NEWRELEASE
  • Primary Globex Firm
  • Number of Sessions - 1 or 2
  • Business Rationale / Background
  1. Select Proceed.

A notification displays at the top of the screen. An email notification is sent to the registered email address.

After requests are submitted, they will have a status of In-Progress until they are processed daily beginning at 4pm CT. Then they are processed and assigned a status of Completed or Failed. If a request fails, the reason for the failure will be included in the request details on the My Requests page.

After validation and setup, the status changes to Completed and the newly created session appears in the list on the BrokerTec Order Entry Sessions page, with an assigned Session ID.

top

Generating Keys for BrokerTec Order Entry Sessions

See: "Secure Key Pairs"

  • To generate keys for BrokerTec Order Entry sessions
  1. Select a session ID(s).
  2. Select Manage Keys for Selected Session(s).
  3. Select Generate Keys.

  1. If prompted, select a key(s) to be deleted immediately and select Delete Selected Key(s) and Proceed.

  1. The Generate New Keys window displays any existing key IDs.

  • Existing Key ID to be expired in 4 weeks
  • Existing Key ID to be deleted Immediately - this key id (selected in the previous step) will be deleted immediately upon creation of a new key id.

Click Generate Key(s).

  1. A notification at the top of the screen and the Download Keys window are displayed. An email notification is sent to the registered email address.

  1. Click Download All Key(s).
  1. Enter the security code that was sent to your device.

If you did not receive the security code, select Resend Code.

  1. Click Download All Key(s).
  1. Select a destination for the file if your web browser requires.
  1. Open the saved file to view the secure key pair(s).

top

Deleting Keys for BrokerTec Order Entry Sessions

See: "Secure Key Pairs"

  • To delete keys for BrokerTec Order Entry sessions
  1. Select a session ID(s).
  2. Select Manage Keys for Selected Session(s).
  3. Click Delete Keys.

If there is more than one key for a session, select the key(s) to be deleted.

  1. Click Delete Key(s).
  2. In the confirmation window, select Delete Key(s) again.

  1. A notification displays at the top of the screen. An email notification is sent to the registered email address.

top

Downloading Keys for BrokerTec Order Entry Sessions

See: "Secure Key Pairs"

  • To download existing keys in text format for BrokerTec Order Entry sessions
  1. Select a session ID(s).
  1. Select Manage Keys for Selected Session(s).
  2. Click Download Keys

  1. Click Download All Keys.

  1. Enter the security code that was sent to your device.

If you did not receive the security code, select Resend Code.

  1. Click Download All Key(s).
  1. Select a destination for the file if your web browser requires.
  2. Open the saved file to view the secure key pair(s).
