Session Management

The purpose of this test is to verify that the client system can successfully maintain an STP FIX Session.

Available Tests

• Session Management Test - Detect a Gap
• Session Management Test - Process a Test Request and Respond to Resend Request

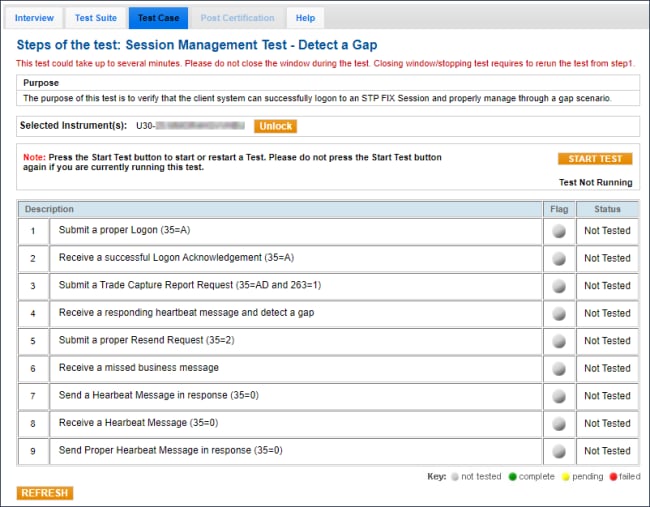

Session Management Test - Detect a Gap

The purpose of this test is to verify that the client system can successfully logon to an STP FIX Session and properly manage through a gap scenario.



1. To run a Session Management - Detect a Gap test:

1. Select a API ID from the drop-down menu and click ASSIGN if not already selected.
2. Select an Instrument from the drop-down menu and click Select if not already selected.

3. Click START TEST to begin.

Note: DO NOT select the "START TEST" button once the test is in progress.

4. Submit a proper Logon (35=A).
5. Receive a successful Logon Acknowledgement (35=A).
6. Submit a Trade Capture Report Request (35=AD|263=1).
7. Detect a lapse in interval time and submit a Test Request (35=1).
8. Receive a responding heartbeat message and detect a gap.
9. Submit a proper Resend Request (35=2).
10. Receive a missed business message.
11. Send a Heartbeat Message in response (35=0).
12. Receive a Heartbeat Message (35=0).
13. Send Proper Heartbeat Message in response (35=0).

Session Management Test - Process a Test Request and Respond to Resend Request

The purpose of this test is to verify that the client system can successfully process a Test Request message and properly respond to a resend request.

1. To run a Session Management - Process a Test Request and Respond to Resend Request test:

1. Select a SenderComp from the drop-down menu and click ASSIGN if not already selected.
2. Select a Contract from the drop-down menu and click Select if not already selected.
3. Click START TEST to begin.

Note: DO NOT select the "START TEST" button once the test is in progress.

4. Submit a proper Logon (35=A).
5. Receive a successful Logon Acknowledgement (35=A).
6. Submit a Trade Capture Report Request (35=AD).
7. Receive a corresponding Trade Capture Report Acknowledgment (35=AQ).
8. Send a Heartbeat Message (35=0).
9. Receive a Test Request Message (35=1).
10. Send a Heartbeat Message in response (35=0).
11. Receive a Resend Request (35=2).
12. Submit a Sequence Reset-Gap Fill message (35=4).
13. Receive a Heartbeat Message (35=0).
14. Send Proper Heartbeat Message (35=0).
15. Receive a Heartbeat Message (35=0).
